Water jet cutting machine is an industrial tool capable of cutting a wide variety of materials using a very high-pressure jet of water and abrasive. It is the most versatile cutting machine, which is able to provide through cut in almost any material. The highly pressurized water stream is forced through a tiny hole which carries abrasive garnet to erode away the material. It can be used to cut steel, stainless steel, aluminum, titanium, marble, granite, tile ceramic, glass, rubber, foam and many other materials.
Fully-Enclosed Cutting Platform
Has many advantages over standarded platform, dust-freewater-proof and lower working noise.
Specifications:

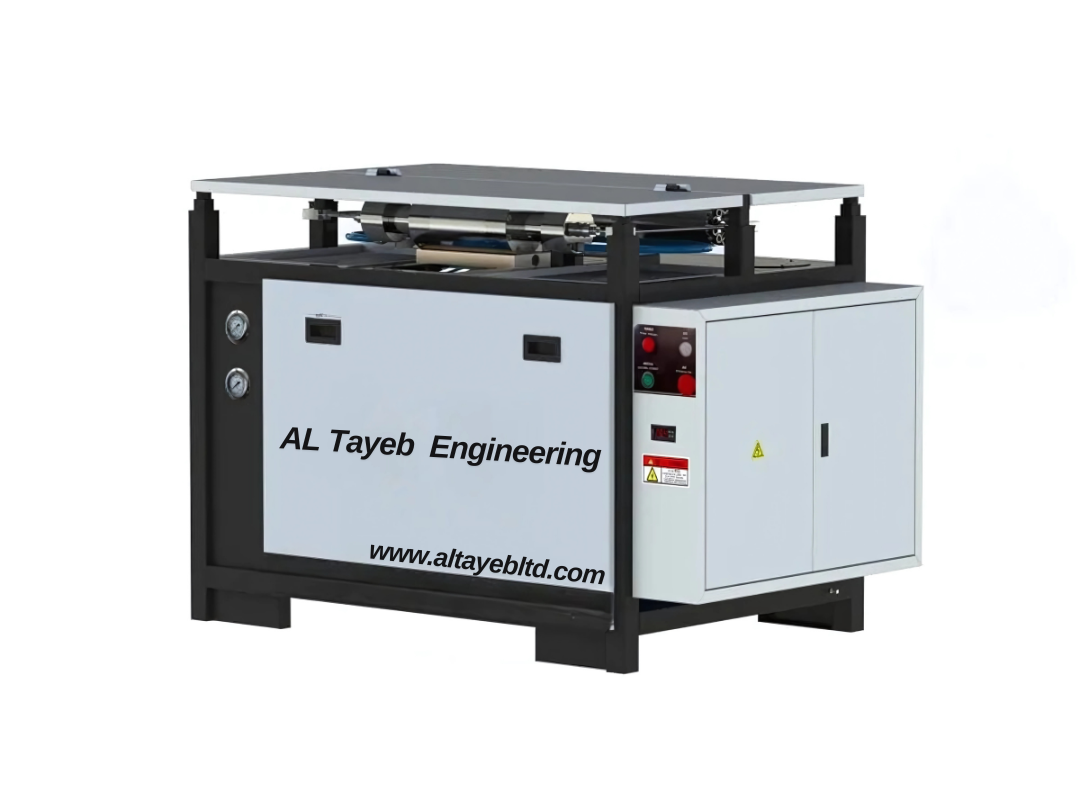

High Pressure Pump
Our classical product. It can be used for most materials cutting such as metal, stone, glass, wood and so on.It can cut steel up to 100mm. Adopting the advanced design concept and structure design, equipped with imported high-quality supercharger and automatic variable displacement oil pump. After tens of thousands of customer verification, it is the most popular model
Specifications
Main Motor Power: 50HP/37KW
Max. Working Pressure: 410Mpa/60,000PSI
Continuous Working Pressure: 360-380Mpa
Max. Water Discharge: 3.7L/min
Max. Orifice Available: 0.3mm
Power Supply: 380V/50Hz/3PH
Noise Level: 75db(A)
Cutting Water System
Min. Inlet Cutting water: 16L/min
Min. Inlet Cutting Water Pressure: 0.24Mpa
Accumulator Volume: 1.2L
Hydraulic System
Max. Hydraulic Pressure: 20Mpa/2,900PSI
Oil Tank Capacity: 114L
Cooling System
Min. Inlet Cooling Water: 12L/min
Min. Inlet Cooling Water Pressure: 0.3Mpa
CNC Waterjet Software
Features
• Italain ECS Touch Screen
• 15 Inch LCD Monitor
• ECS control system from Italy
• Windows 10 operating system
• Bus motion control
• Support DXF and NC code file
•Stop and continue process function
•Able to set the best starting position
•Able to cut from any component
•ShapeCAMM software integrated
•Muliti-language operating interface
Auto Abrasive Delivery System
Max. Inlet Air Pressure：0.8Mpa
Min. Inlet Air Pressure：0.2Mpa
Abrasive Capacity：270Kg
Operating Air Flow：0.5 m3/min
Volume：590x590x1340mm
Power Supply：GC24V
Features
Self-feeding Control
Self sealing
Air Valve to prevent jams and breakages
Use non-metallic sensor to work acutely and long work life
A/B 5 AXIS
Due to the loss of water flow energy, the traditional 3-axis waterjet has a large and small slope, which affects the efficiency and precision of cutting. The birth of the A/B 5-axis cutting head solves this problem perfectly. It compensates for the cutting inclination by changing the inclination angle of the cutter head to achieve the purpose of vertical cutting and negative angle cutting. At present, A/B 5-axis has been widely used in the field of stone processing and metal cutting.
A/C 5 AXIS
Get the most versatile, Accurate Cuts
By using a cutting head with true five axes, cones can be cut, holes can be drilled into tubes and ribbed/beveled edges can be produced. While such flexible systems come at a price, they can be used in the most advanced cutting applications. We sold many sets of AC 5 axis all over the world these years to cut complex metal parts with sharp angles, unusual shapes. Some use it to cut 45.5°to make marble benchtops By configuring 3D Alma software, 3D shapes can be cut also.and ect.
