APW-3020BA-A15+B-3 axis
Water jet cutting machine is an industrial tool capable of cutting a wide variety of materials using a very high-pressure jet of water and abrasive. It is the most versatile cutting machine, which is able to provide through cut in almost any material. The highly pressurized water stream is forced through a tiny hole which carries abrasive garnet to erode away the material. It can be used to cut steel, stainless steel, aluminum, titanium, marble, granite, tile ceramic, glass, rubber, foam and many other materials.
APW COMPANY’S MOST POPULAR MODEL: 3020BA
The overall structure design of the cutting platform is reasonable
Widely used in marble and granite cutting, metal cutting. Bridge style cutting platform makes the structure more robust and stable. X axis 3m, Y axis 2m effective cutting area is nearly enough to load most of the stone work piece. APW company usually have this type in stock and can arrange the machine delivery in a week.

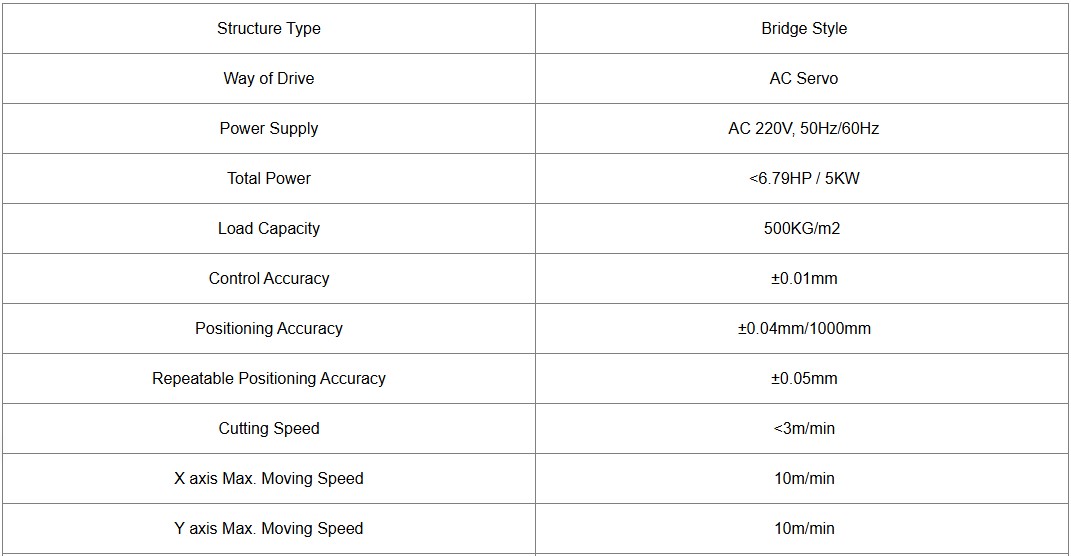

Specifications
High Pressure Pump
Two intensifiers work alternatively. In case one of them break down, other one will work continuously by a manual transition. This kind of design will ensure there is always one intensifier at work when maintenance or installation. It will not affect your work and increase the working efficiency.
Specifications
Main Motor Power: 50HP/37KW
Max. Working Pressure: 410Mpa/60,000PSI
Continuous Working Pressure: 360-380Mpa
Max. Water Discharge: 3.7L/min
Max. Orifice Available: 0.3mm
Power Supply: 380V/50Hz/3PH
Noise Level: 75db(A)
Cutting Water System
Min. Inlet Cutting water: 16L/min
Min. Inlet Cutting Water Pressure: 0.24Mpa
Accumulator Volume: 1.2L
Hydraulic System
Max. Hydraulic Pressure: 20Mpa/2,900PSI
Oil Tank Capacity: 114L
Cooling System
Min. Inlet Cooling Water: 12L/min
Min. Inlet Cooling Water Pressure: 0.3Mpa
CNC Waterjet Software
Features
• Italain ECS Touch Screen
• 15 Inch LCD Monitor
• ECS control system from Italy
• Windows 10 operating system
• Bus motion control
• Support DXF and NC code file
•Stop and continue process function
•Able to set the best starting position
•Able to cut from any component
•ShapeCAMM software integrated
•Muliti-language operating interface
Auto Abrasive Delivery System
Max. Inlet Air Pressure：0.8Mpa
Min. Inlet Air Pressure：0.2Mpa
Abrasive Capacity：270Kg
Operating Air Flow：0.5 m3/min
Volume：590x590x1340mm
Power Supply：GC24V
Features
Self-feeding Control
Self sealing
Air Valve to prevent jams and breakages
Use non-metallic sensor to work acutely and long work life
APW 3 AXIS CUTTING HEAD
Most standarded 3 axis cutting head, no tilting angle cutting, USA imported curcial parts, nozzle and orifice. Good workmanship to ensure the consentricity of the abrasive pipe and gemstone. The APW cutting head consist of pure water cutting head and abrasive water cutting head to meet your versatile cutting applications.
